Product Code: qua.1
Availability: In Stock
Call for Price: +380677956146
The controller, based on the temperature, controls the ventilation and heating.
  • Managing supply and exhaust ventilation, heating.
  • All measurement data, settings and ventilation mode are displayed.

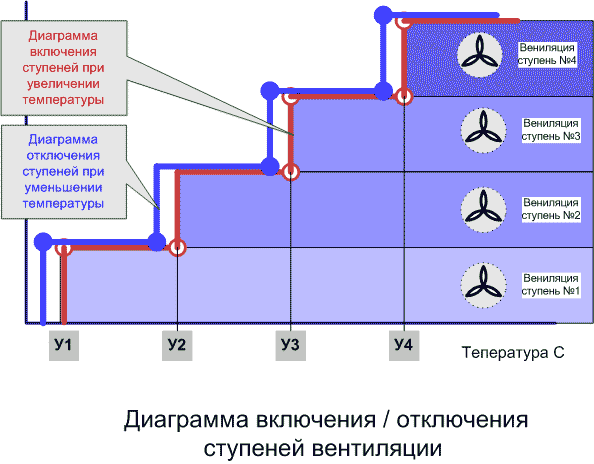

  • Cyclic switching stages with minimal ventilation level.

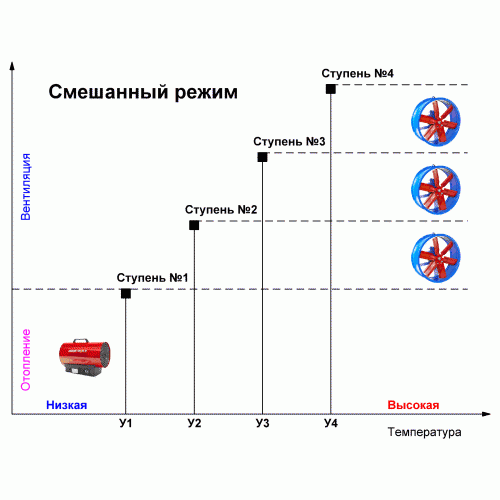

  • Stepping climate control, automatic and manual operation.

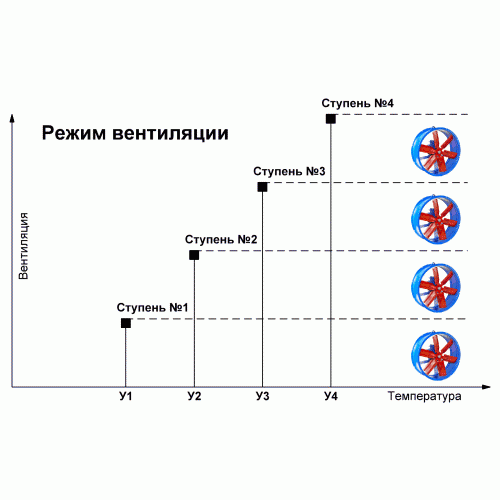

Serial connection of exhaust fans when the temperature rises inside the building.

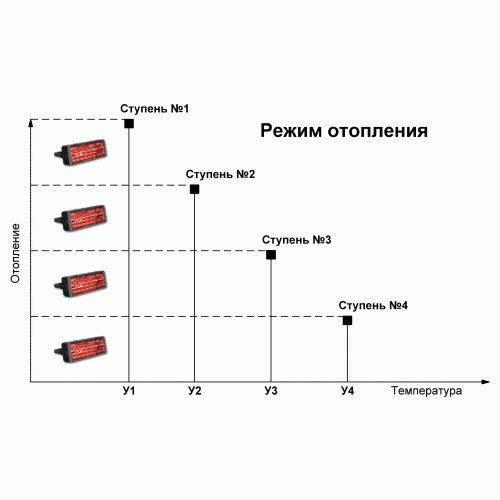

Connecting the heater at low temperature inside the building.
  • Digital temperature sensors - to 3 pcs.
  • Relative humidity sensor
  • Exhaust and supply fans (4 groups).
  • Tunnel ventilation.
  • Heat generator.
Technical characteristics
Temperature measurement from -50,0 to +125,0 °С
Temperature controlsfrom 0,0 to +99,9 °С
The accuracy of temperature control0,2 °С
Regulation RHfrom 5% to 100%
Accuracy of relative humidity control 5%
4 relay outputs 220 V, 2 А.
protection class IP54
Environment temperaturefrom 0,0 to +30,0 °С
Power supply~220V/12V.
Running timearound the clock
Unit Dimensions no more130х110х40 mm.

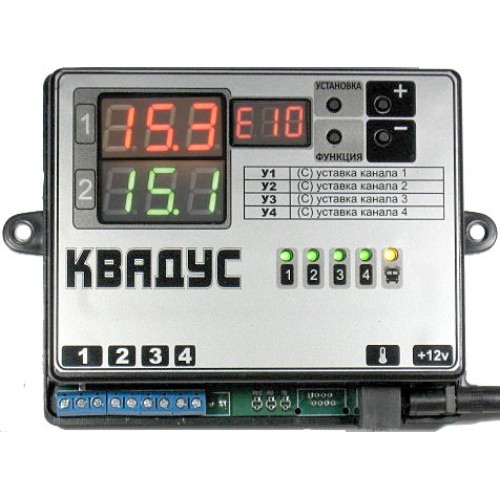

The ventilation controller "QUADUSE"1 pc.
Power adapter 220V/12V/1000mА1 pc.
